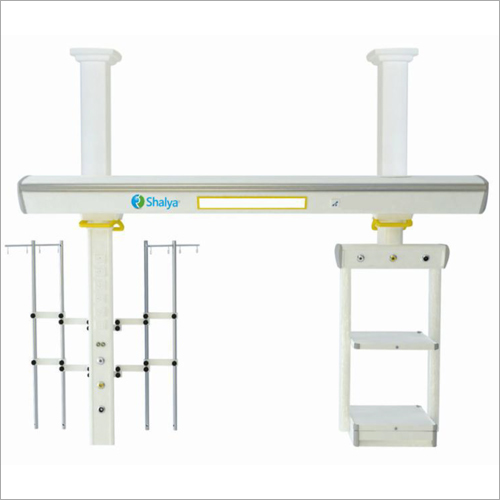

Anesthesia Pendant With Electric Lift

Get a Price/Quote

Anesthesia Pendant With Electric Lift Specification

Product Type
Anesthesia Pendant With Electric Lift

Storage Capacity
Multiple shelves/drawers (customizable)

Phase
Single Phase

Height
Electric lift adjustable, 600 mm travel

Shape
Column (vertical)

Temperature Range
0C to +40C

Color Code
White/Blue (customizable)

Properties
Gas outlet, power sockets, data communication ports, IV pole, adjustable shelf

Automation Grade
Automatic (electric lift)

Frequency
50 Hz

Material
High-Grade Aluminum Alloy & Steel

Accuracy
Mechanical movement, not applicable

Suitable For
Hospitals, Surgical Centres

Use
To provide convenient access to medical gases, electrical power and equipment

Dimension (L*W*H)
1200 x 500 x 1800 mm (approx.)

Treatment Type
Anesthesia, Resuscitation Support

Display Type
Mechanical, no display

Application
Operation Theatres, ICU, Emergency Wards

Weight
Approx. 80-100 kg

Function
Anesthesia gas management and support equipment mounting

Humidity Range
10% to 95% RH

Power
Electric, 150W (motor)

Display
No digital display

Power Source
Electric Mains

Voltage
220 V AC

Braking Mechanism
Pneumatic/Mechanical arm brake

Gas Outlets
2 to 4 (O2, Vacuum, Air, NO as per requirements)

Swivel Range
340-350 rotation

Load Capacity
Max 120 kg

Surface Finish
Antibacterial powder coating

Noise Level
<40 dB during operation

Arm Configuration
Single/Double arm (as required)

Cable Management
Integrated, concealed routing

Control System
Integrated touch control (optional)

Accessories Included
IV Pole, Infusion Rack, Drawers, Monitor Shelf

Electrical Sockets
6 to 10 (5/15A, universal type, grounded)

Lift Type
Electrically powered vertical lift

Anesthesia Pendant With Electric Lift Trade Information

Main Domestic Market
All India

About Anesthesia Pendant With Electric Lift

We are instrumental in supplying a premium grade Anesthesia Pendant Without Electric that is specially designed to help enhance workflow in the Or environment. The device provides all medical gas and electrical services. It facilitates equipment management for the anesthetics. Due to its ergonomic design and high build quality, we are seeing a huge demand for the Anesthesia Pendant Without Electric in the marketplace. Our patrons can get the anesthesia pendant at a cost-effective price.

Efficient Space Management and Accessibility

This anesthesia pendant enables hospitals to optimize space by neatly organizing critical utilities such as medical gases, electrical outlets, and essential equipment on a single column. Its vertical lift system allows caregivers to adjust the pendant height with ease, promoting better accessibility and reducing clutter in busy environments.

Advanced Safety and Hygiene Features

Incorporating high-grade aluminum alloy and steel with an antibacterial powder coating, this unit ensures maximum durability and hygiene. Its integrated, concealed cable management and mechanical or pneumatic brake arms provide secure and orderly positioning, contributing to a safer environment for healthcare staff and patients alike.

FAQs of Anesthesia Pendant With Electric Lift:

Q: How is the electric lift adjusted on the anesthesia pendant?

A: The electric lift can be easily adjusted using the integrated touch control system (optional) or a dedicated switch, providing smooth and precise vertical movement with a 600 mm range to suit various clinical workflows.

Q: What is included with the anesthesia pendant as standard accessories?

A: Standard accessories include an IV pole, infusion rack, drawers, monitor shelf, and integrated cable management. Additional storage solutions can be customized according to departmental requirements.

Q: When should this pendant be used in a hospital setting?

A: This pendant is ideal during anesthesia procedures, resuscitation, or critical care scenarios in operation theatres, ICUs, or emergency wards, whenever convenient access to medical gases, power, and equipment is essential.

Q: Where can the pendant be installed within a healthcare facility?

A: It is designed for flexible installation in operating rooms, intensive care units, and emergency wards, providing centralized access to utilities and supporting devices wherever continuous medical care is needed.

Q: What are the benefits of the integrated cable management system?

A: The concealed routing system keeps all power and data cables organized and out of sight, reducing tripping hazards, simplifying cleaning, and enhancing the overall safety and aesthetics of the clinical environment.

Q: How does the safety arm braking mechanism work?

A: The pendant employs either a pneumatic or mechanical brake on its arm, allowing secure locking and precise positioning of the pendant at the desired angle within the 340-350 swivel range.

Q: What makes the pendant suitable for infection-prone environments?

A: The surface of the pendant is coated with antibacterial powder, and its smooth, high-grade metal construction supports easy cleaning, making it highly suitable for use in sterile and infection-prone hospital areas.
