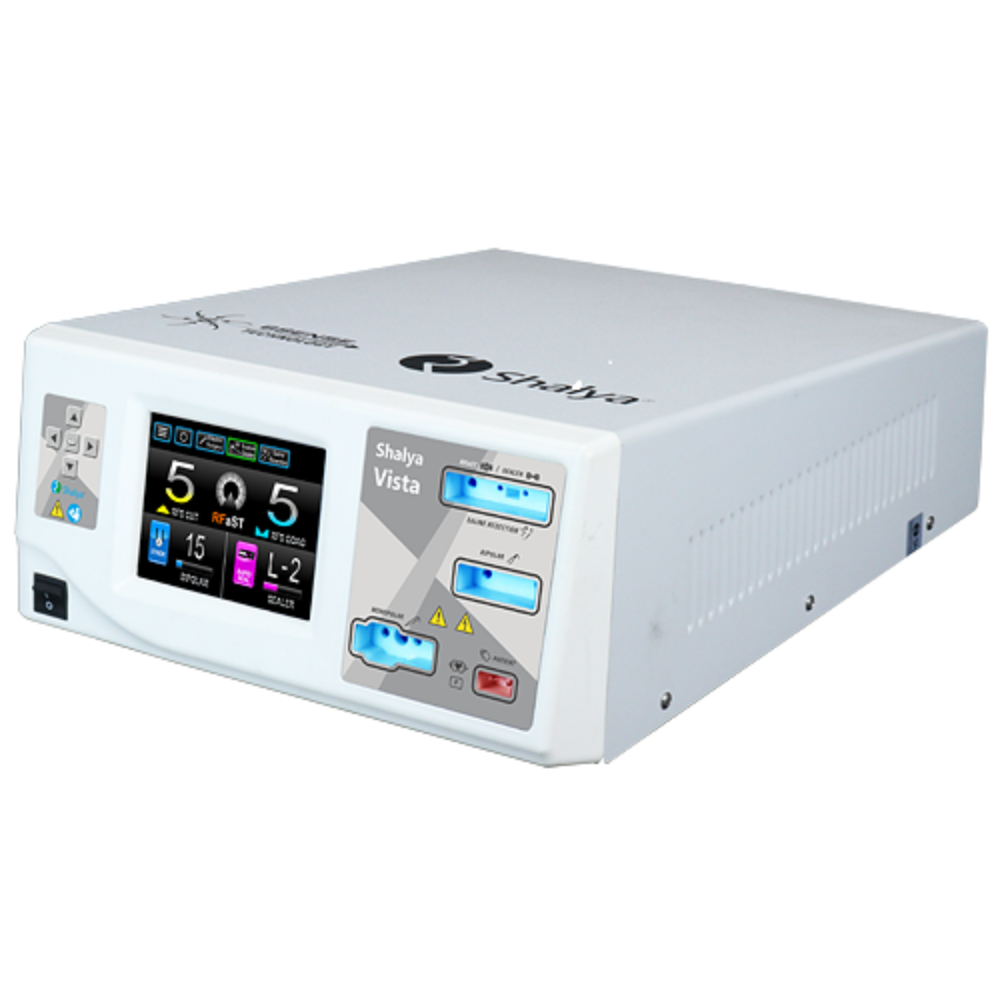

Bipolar Plasma Resection Electro-surgical Unit

Send Inquiry

Request To Call Back

Bipolar Plasma Resection Electro-surgical Unit

Get a Price/Quote

Bipolar Plasma Resection Electro-surgical Unit Specification

Color Code
White & Blue

Frequency
50/60 Hz

Properties
Plasma Vapo-resection, Minimal Thermal Spread, Advanced Safety Features

Accuracy
10% power output

Product Type
Bipolar Plasma Resection Electro-surgical Unit

Display Type
7-Segment Digital Numeric

Dimension (L*W*H)
360 x 320 x 120 mm

Shape
Rectangular

Treatment Type
Transurethral Resection of Prostate (TURP), Bladder Tumors

Material
Medical Grade Stainless Steel & High-impact ABS Body

Function
Bipolar Plasma Cutting and Coagulation

Storage Capacity
User Program Memory for 5 Presets

Humidity Range
30-75% RH

Power
Maximum 400 W (Cut/Coag)

Application
Urology, TURP, Bladder Tumor Removal, Endoscopic Surgery

Phase
Single Phase

Weight
Approx. 6.8 kg

Height
120 mm

Use
Electrosurgical Cutting and Coagulation in Saline medium

Suitable For
Hospitals and Operating Rooms

Automation Grade
Semi-Automatic

Temperature Range
10C to 40C

Voltage
220240 V AC

Power Source
Electric

Display
Digital Display

Ingress Protection
IP21

Patient Safety
REM (Return Electrode Monitoring), Automatic Circuit Self-Check

Output Socket
Universal Bipolar & Monopolar

Surge Protection
Integrated, Medical Grade

Cooling System
Fan cooled, Overheat Protection

Compliance
CE Certified, ISO 13485

Surgical Compatibility
Compatible with Standard Resectoscopes

Control Interface
Panel Buttons & Foot Switch

Output Modes
Bipolar Cut, Bipolar Coag, Plasma Resection

Accessories Included
Handpiece, Bipolar Electrode, Footswitch, Power Cord, User Manual

Bipolar Plasma Resection Electro-surgical Unit Trade Information

Main Domestic Market
All India

About Bipolar Plasma Resection Electro-surgical Unit

The Bipolar Plasma Resection Electro-surgical Unit is a medical device used in surgical procedures to remove tissue and control bleeding. It delivers a precise and controlled level of energy to the surgical site, allowing for precise cutting and coagulation of tissue. This unit can be used in a variety of surgical procedures, including urological, gynecological, and general surgery. It is particularly useful in procedures that involve delicate tissue structures and is essential to preserve surrounding tissue. Additionally, this unit can help to minimize bleeding during surgery, reducing the risk of complications and improving patient outcomes. The Bipolar Plasma Resection Electro-surgical Unit helps improve surgical outcomes.

Advanced Cutting and Coagulation in Saline

The system utilizes bipolar plasma technology for efficient resection and coagulation in saline, ensuring safe and optimal outcomes for procedures like TURP and bladder tumor removal. With modes tailored for precise cutting, controlled coagulation, and plasma resection, the unit is compatible with standard resectoscopes used in modern endoscopic surgeries.

Comprehensive Safety and Control Features

Patient safety is at the forefront with REM, automatic circuit self-check, integrated surge protection, and overheat safeguards. The units digital display and tactile controls (panel buttons and footswitch) facilitate easy operation and real-time monitoring. Its medical-grade construction assures reliability and compliance with CE and ISO 13485 standards.

FAQs of Bipolar Plasma Resection Electro-surgical Unit:

Q: How does the Bipolar Plasma Resection Electro-surgical Unit improve surgical precision?

A: This unit employs bipolar plasma technology that allows targeted tissue cutting and coagulation with minimal thermal spread, enhancing surgical accuracy and reducing collateral tissue damage during procedures like TURP and bladder tumor removals.

Q: What safety mechanisms are integrated into the unit to protect patients?

A: The device is equipped with Return Electrode Monitoring (REM), automatic circuit self-checks, integrated medical-grade surge protection, and overheat protection to ensure the highest levels of operational safety and patient protection throughout the surgical process.

Q: When is this electrosurgical unit most effectively used?

A: It is primarily utilized during endoscopic urological surgeries, such as transurethral resection of the prostate (TURP) and bladder tumor removal, where precise tissue management in a saline medium is required.

Q: Where can this unit be installed and used?

A: The unit is designed for installation in hospitals and operating rooms, particularly in urology departments or surgical suites equipped for advanced endoscopic procedures.

Q: What is the process for operating the Bipolar Plasma Resection Electro-surgical Unit?

A: Operation involves setting the desired mode (bipolar cut, coag, or plasma resection) and adjusting parameters using the panel controls. The surgeon then utilizes the footswitch for precision during surgery, while the integrated safety systems continuously monitor device and patient status.

Q: What accessories are supplied with the unit for immediate use?

A: Each unit comes complete with a handpiece, bipolar electrode, footswitch, power cord, and user manual, ensuring readiness for surgical applications upon installation.

Q: What benefits does this unit offer hospitals and surgeons?

A: Its minimal thermal spread, advanced safety features, compatibility with standard resectoscopes, and high reliability make it an excellent choice for healthcare providers seeking efficient, safe, and versatile electrosurgical solutions in urology and related fields.
